Professional Electrical
Engineering Calculators
50 calculators across 5 engineering disciplines. Instant results, built-in formulas, offline-first. Built for engineers, technicians, and students.
50
Calculators
5
Categories
Free
to Start
Offline
First
Built for Engineers
Everything you need for electrical engineering calculations on the go.
50 Professional Calculators
Five complete engineering disciplines in one app — Basic Circuits, AC Analysis, Components, Power Systems, and Electronics. From Ohm's Law to Op-Amp Gain.
Visualize Your Results

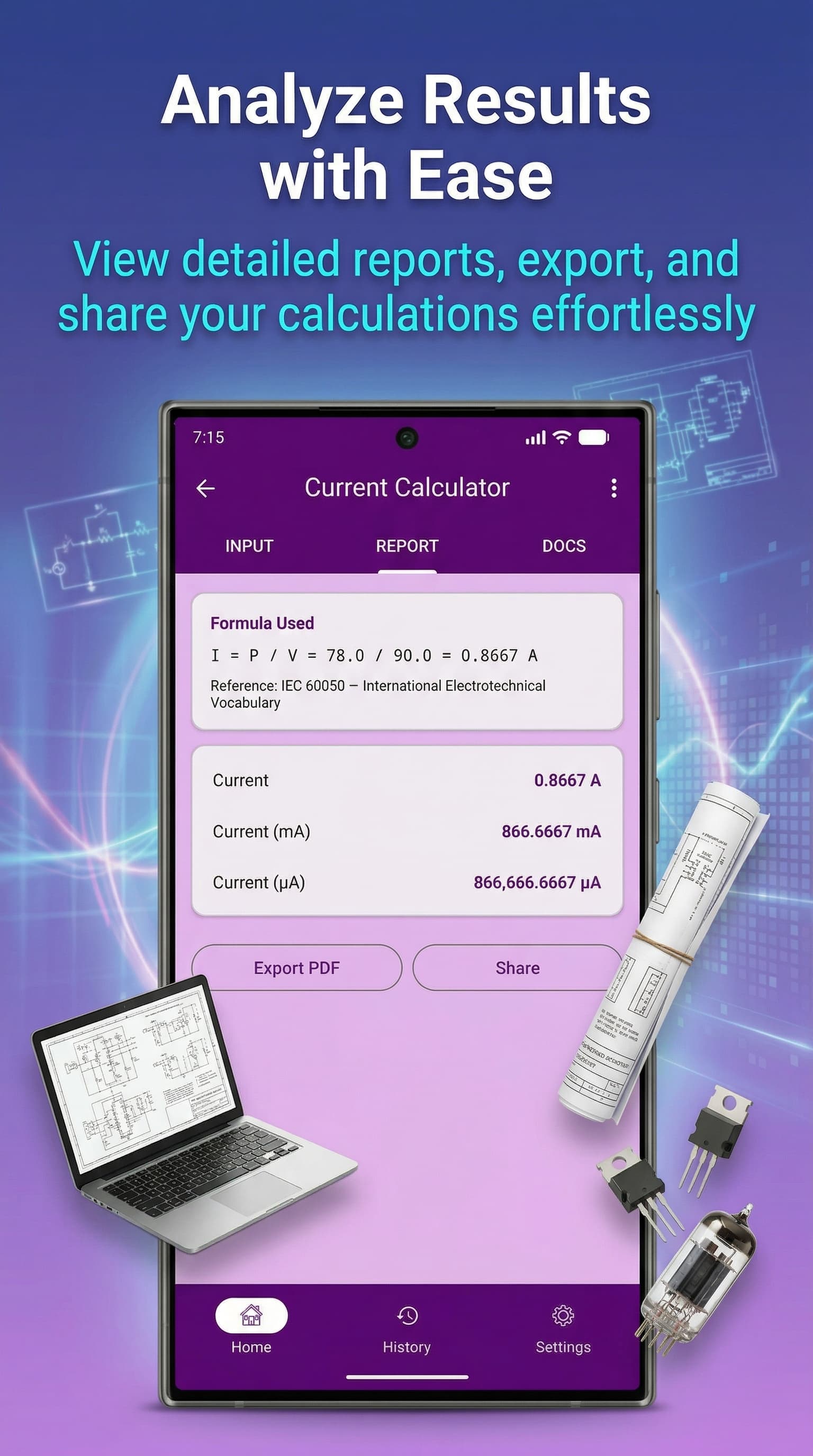

Every calculator generates charts and detailed output in the Report tab, giving you a clear picture of your calculations beyond just the numbers.
Export & Share Anywhere
Export to PDF, Excel, or CSV with a single tap. Share results via email directly from the app. PRO feature — unlock with a one-time $3.99 upgrade.
Fully Offline
All 50 calculators run entirely on-device. No internet required for calculations. Your history is stored locally in a Room database and never transmitted.
50 Professional Calculators
Select a category to explore all calculators. PRO badges indicate premium tools.
Ohm's Law, Power, Energy, Cost
Ohm's Law Calculator
Calculate voltage (V = IR), current (I = V/R), and resistance (R = V/I). Ohm's Law fundamentals.
Voltage Calculator
Calculate voltage across components using Ohm's Law and Kirchhoff's Voltage Law (KVL).
Current Calculator
Calculate current in series and parallel circuits. Apply KCL to multi-branch networks.
Resistance Calculator
Calculate total resistance in series (R = R1+R2+...) and parallel (1/R = 1/R1+1/R2+...) circuits.
Power Calculator
Calculate electrical power: P = VI = I²R = V²/R. Supports DC and resistive AC circuits.
Energy Consumption Calculator
Calculate energy consumed: E = P × t (kWh). Estimate device energy usage over time.
Electrical Cost Calculator
Calculate electricity cost: Cost = kWh × Rate. Enter power, hours, and price per kWh.
Watt Calculator
Convert watts to kW, HP, and BTU/hr. Bidirectional power unit conversion for motors and appliances.
Joule Calculator
Calculate energy in joules: J = W × s. Convert between joules, calories, and watt-hours.
Electric Charge Calculator
Calculate charge: Q = I × t. Convert between coulombs, milliampere-hours, and ampere-hours.
Reactance Calculator
Calculate inductive (XL = 2πfL) and capacitive (XC = 1/2πfC) reactance at any frequency.
Impedance Calculator
Calculate total impedance Z = √(R² + X²) for series and parallel RLC circuits.
Power Factor Calculator
Calculate power factor: PF = cos(θ) = P/S. Analyze leading and lagging loads.
Real Power Calculator
Calculate true (real) power P = V × I × cos(θ) for AC circuits in watts and kilowatts.
Reactive Power Calculator
Calculate reactive power Q = V × I × sin(θ) in VAR. Analyze capacitive and inductive loads.
Apparent Power Calculator
Calculate apparent power S = V × I in VA and kVA. Essential for transformer and UPS sizing.
RMS Voltage Calculator
Calculate RMS voltage from peak: Vrms = Vpeak / √2. For sinusoidal and non-sinusoidal waveforms.
RMS Current Calculator
Calculate RMS current: Irms = Ipeak / √2. Convert between peak, peak-to-peak, and RMS values.
Frequency Calculator
Calculate frequency from period: f = 1/T. Convert between Hz, kHz, MHz, and angular frequency.
Phase Angle Calculator
Calculate phase angle θ = arctan(X/R) between voltage and current. Determine leading or lagging.
Resistor Color Code Calculator
Decode 4-band and 5-band resistors. Select band colors for instant resistance, tolerance, and E-series standard value.
LED Resistor Calculator
Calculate the series resistor for an LED: R = (Vs − Vf) / If. Supports multiple LEDs in series.
Capacitor Calculator
Calculate capacitance in series and parallel. Convert between F, μF, nF, and pF. Charge/discharge curves.
Inductor Calculator
Calculate inductance in series and parallel. Toroidal and solenoid coil inductance calculation.
RC Time Constant Calculator
Calculate RC time constant τ = R × C. Charge/discharge time to 63.2% and 99.3% of Vc.
RL Time Constant Calculator
Calculate RL time constant τ = L/R. Current rise and fall times in inductive circuits.
RLC Resonance Calculator
Calculate resonant frequency f = 1/(2π√(LC)). Series and parallel resonance, bandwidth, Q factor.
Capacitor Energy Calculator
Calculate energy stored in a capacitor: E = ½CV². Supercapacitor and capacitor bank analysis.
Inductor Energy Calculator
Calculate energy stored: E = ½LI². Magnetic field energy in inductors.
Filter Calculator
Design low-pass, high-pass, band-pass filters. Calculate cutoff frequency: fc = 1/(2πRC).
Transformer Calculator
Calculate turns ratio, voltage/current transformation. Np/Ns = Vp/Vs = Is/Ip.
Transmission Line Loss Calculator
Calculate I²R losses in power lines. Voltage drop and power loss over distance.
Voltage Drop Calculator
Calculate voltage drop in cables: Vd = (2 × I × R × L) / 1000. Per NEC guidelines.
Short Circuit Current Calculator
Calculate fault current Isc = V / Z. Symmetrical and asymmetrical fault analysis.
Load Calculator
Calculate total electrical load for residential/commercial. Demand factors per NEC Article 220.
Generator Power Calculator
Size generators for loads. Calculate kVA, kW with power factor. Startup surge consideration.
Motor Current Calculator
Calculate full load amps: I = P / (V × PF × η × √3) for 3-phase motors.
Motor Power Calculator
Calculate motor power, torque, RPM relationships. HP ↔ kW conversion. Efficiency analysis.
Battery Capacity Calculator
Calculate battery capacity in Ah/Wh. Runtime, charge time, series/parallel configurations.
UPS Runtime Calculator
Calculate UPS battery runtime: t = (VA × PF × Eff) / Load. Size UPS for load.
Transistor Bias Calculator
Calculate BJT bias point: IC, VCE, IB for voltage divider bias. Operating point analysis.
Op-Amp Gain Calculator
Calculate gain for inverting (-Rf/Rin) and non-inverting (1 + Rf/Rin) configurations.
Voltage Divider Calculator
Calculate output voltage: Vout = Vin × R2 / (R1 + R2). Find resistor values.
ADC Resolution Calculator
Calculate ADC resolution, step size, and quantization. LSB = Vref / 2^n.
DAC Output Calculator
Calculate DAC output voltage: Vout = (Digital Value / 2^n) × Vref.
Signal Frequency Calculator
Analyze signal frequency, period, wavelength. f = 1/T, λ = c/f.
PWM Duty Cycle Calculator
Calculate duty cycle, average voltage, frequency from on/off times. D = Ton/(Ton+Toff).
Oscillator Frequency Calculator
Calculate oscillator frequency for RC, LC, crystal circuits. f = 1/(2π√(LC)).
Gain Calculator
Calculate gain in dB: Av(dB) = 20 × log10(Vout/Vin). Power gain: 10 × log10(Pout/Pin).
Signal Attenuation Calculator
Calculate signal loss in dB over distance. Attenuation = 10 × log10(Pin/Pout).
FREE FEATURE
Decode Any Resistor in Seconds
Select band colors for a 4-band or 5-band resistor and instantly get the resistance value, tolerance, and E-series closest standard value. No color chart required — it's built in.
Download Free4-Band: Brown · Black · Red · Gold = 1 kΩ ±5%
See It in Action
A clean, engineer-friendly interface optimized for phones and tablets.

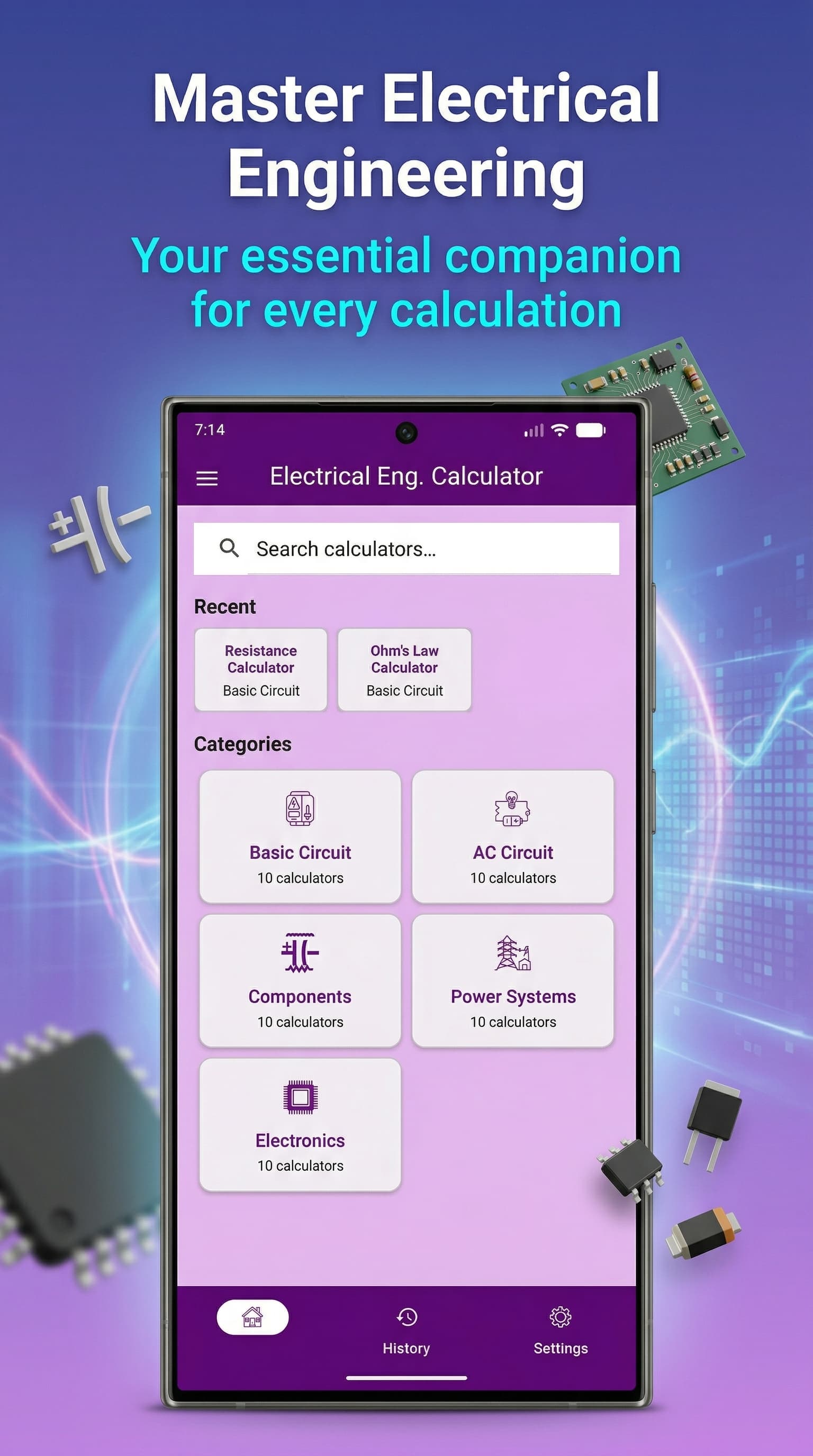

Home — All 50 calculators by category
Simple, One-Time Pricing
No subscription. No recurring charges. Pay once, keep forever.
Free
$0
Get started with the most essential calculators.
- 20 calculators — 4 from each category
- Ohm's Law, Voltage, Current, Resistance
- Reactance, Impedance, Power Factor, Real Power
- Resistor Color Code, LED Resistor, Capacitor, Inductor
- Transformer, Voltage Drop, Transmission Line Loss, Short Circuit Current
- Transistor Bias, Op-Amp Gain, Voltage Divider, ADC Resolution
- Calculation history
- Built-in documentation and formulas
- Ads shown between calculators
- 30 Pro calculators locked
- Export to PDF / Excel / CSV not available
Pro
$3.99
One-time purchase · Lifetime access
Unlock every calculator and remove all ads. Forever.
- All 50 calculators unlocked
- Everything in Free
- Power Calculator, Energy Consumption, Electrical Cost
- Joule, Watt, Electric Charge Calculators
- All 6 additional AC Circuit calculators (RMS, Frequency, Phase Angle, etc.)
- RC/RL Time Constants, RLC Resonance, Filter, Energy Calculators
- All Power Systems: Load, Generator, Motor, Battery, UPS
- All Electronics: DAC, PWM, Oscillator, Gain, Signal Attenuation
- No advertisements
- Export results to PDF, Excel, and CSV
- Share results via email
- Priority updates and new features
- Restore purchase on any device
Purchases managed securely by Google Play. Restore anytime from Settings inside the app. Price displayed in USD. Local pricing may vary.
Frequently Asked Questions
Get in Touch
Have a question about a calculation, a feature request, or need help with your purchase? We're here.
